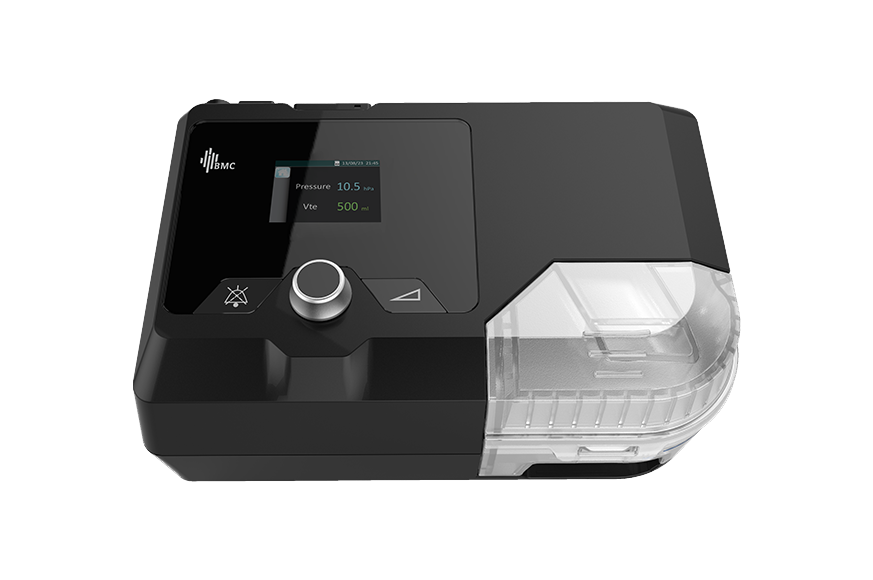

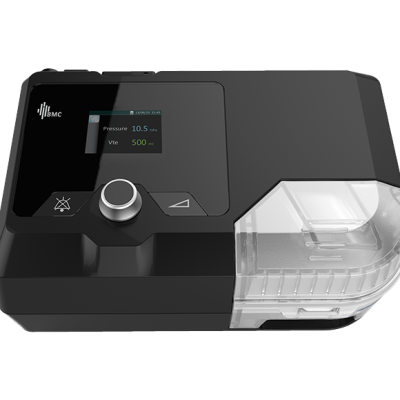

G2S Series PAP Devices- Cpap BMC

Ultra modern design with a user friendly interface

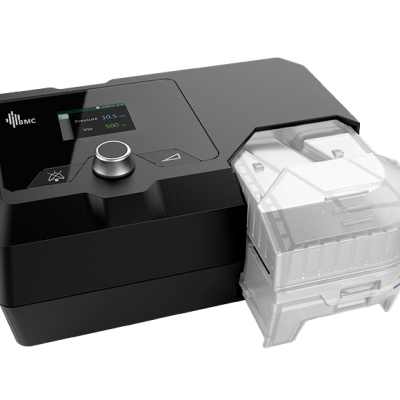

• The water chamber with drawer structure and opening cover, is more convenient to fill water and clean.
• 3-button control panel with clear user interface makes it simple and easy to use.

Intelligent comfort features

• Inspiratory / Expiratory sensitivity
• 8 grades of I Sens and E Sens optimize the compliance of the device with the patient.
• Newly designed integrated humidifier has large heating plate (> 50 cm2), which ensures excellent humidifying capacity and improves comfort.
• The ramp time ranges from 0 to 60 minutes



Efficiencies in Therapy

• Auto CPAP pressure automatically to improve patient comfort based on monitoring of apnea, hypopnea and snoring events.
• AutoS mode

  Auto adjusting S mode, according to the sleep events, the pressure changes automatically within the set range.

• Automatic leakage compensation ensures the therapy accuracy anywhere.
• S/T Mode

  The device complies with patient’s breathing. However, if there is no inhalation for a certain period of time, the device will give a forced ventilation to ensure the minimum ventilation.

• Target Tidal Volume Function

  √ Optimize IPAP according to mean Vt of last 5 breathings and prescribed Target Vt. Larger difference between mean Vt and target Vt takes more evident adjustment in IPAP.

  √ Inspiratory pressure is between IPAP min and IPAP max.

  √ Larger difference between mean Vt and target Vt takes more evident adjustment in IPAP.

• Patient Vt is the mean of Vt values from patient’s last 5 breathings.
